Dual Station Fixed Table

The fixed table allows the operator to load the parts directly into their fixture as the robot waits in a safe position for the safety door to close before welding.

MOD-WELD Dual Station Fixed Table Specs
Exclusive with FANUC Robot
System Model	DSFT-48-AM50	DSFT-72-AM100	DSFT-96-AM120
6-Axis Robot	FANUC ARC Mate 50iD	FANUC ARC Mate 100iD	FANUC ARC Mate 120iD
Robot Reach	36”	57”	72”
Robot Power	480VAC 3PH 60AMP
Robot Programming	Teach Pendent Only
Torch Roller Dress-out	MOD-WELD Custom
Available I/O	8 in 8 out
Available Valve Bank Space	(4) closed center / (4) Blanks
Operator Interface / Recipe Management	Rockwell PLC/HMI Interface
Cell Footprint	60" x 90"	84" x 102"	108" x 114"
Table Work Space	2 @ 20" x 16" each	2 @ 30" x 20" each	2 @ 40" x 36" each
Table Hole size	16mm Dia 2" x 2" Hole Pattern
Options
Part Number	Part Description
HWST	Heavy Weld Seam Track Software
Custom Weld Fixtures	Send Drawings for Quote
ABIO-8	Additional Allen Bradley I/O, 8 in 8 out
SY7301-5U1-NA	Additional 3 position closed center valve
MW-48-EX-HOOD	48” Exhaust Hood with 8" duct
MW-72-EX-HOOD	72” Exhaust Hood with 8" duct
MW-96-EX-HOOD	96” Exhaust Hood with 8" duct
RANC	Robotic auto nozzle cleaner, wire cut, spatter removal, and spatter spray

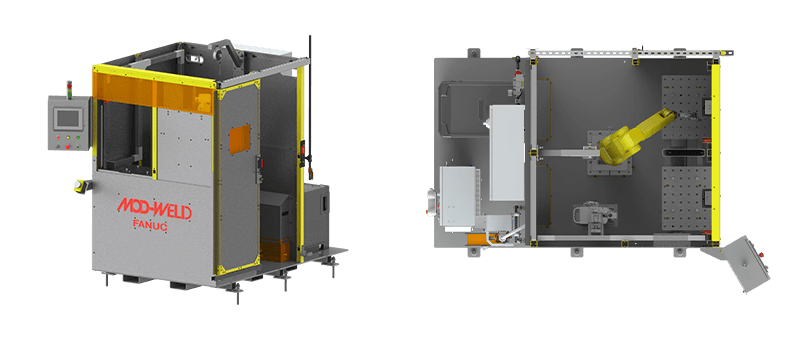

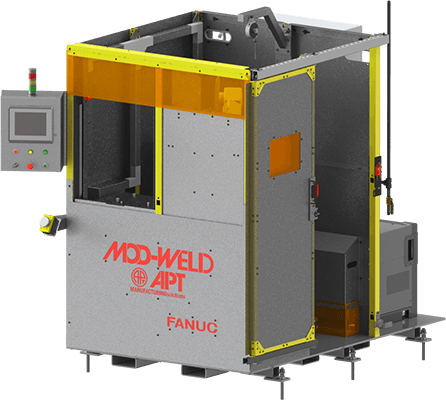

MOD-WELD Dual Station Fixed Table

View our Modular Welding Solutions Catalog

View Modular Welding Overview

See more models

FANUC Robot / Rockwell Controls / Integrated by APT Manufacturing
Load/Unload directly into the weld cell
Locating holes for Fixtures to be removed and set back up in same location
Ease of set up
Easy maintenance and cleanliness
Side access door for entering in a safe environment
Small footprint
Recipe Management with room for up to 100 recipes
Base model is configured to weld steel (hard metal), soft metals require additional options
Power Source Choice of:
- Miller Auto-Continuum with torch and wire feed
- Fronius TPS/i with torch and wire feed

Power Supply Choice

-	Fronius 400	Miller 350
Power Supply	TPSi-400	Auto-Continuum 350
Main Voltage	200-230V / 380-460 3-PH	230-575 V 3-PH
Torch	Fronius .035 wire	Tregaskiss .035 wire
Welding Type	link	link
Available Training		Miller OpenBook
Welder Tips		Miller Auto-Continuum™ Tips & Tricks
Options
-	Description	Description
HHT *	FHHT Fronius hand held torch as an addition to the robot torch	MHHT Miller hand held torch as an addition to the robot torch
Power Supply Upgrade *	TPSi-500 and 600	Auto-Continuum 500
COOLER *	Fronius Chiller	Miller Chiller
SRVT (servo torch) *	Fronius Push/Pull Ready System	FANUC Servo with Binzel Gun
Weld Process Software	PMC / LSC / CMT
