iLS

Industrial Learning System

This industry approved equipment is designed to use a single workstation with interchangeable learning lab modules. It will grow with your teaching preference, just add a different module to the existing workstation when you’re ready to teach a new lab in your class. See module categories below, including blank modules to create your own unique build. Both base units are customizable to fit your teaching and learning needs. Simply hang, connect, and test. The modules can then be interconnected to create a working industrial control system. Designed for multiple students with the same or different curriculum at one time.

View Educational Catalog

Base Units

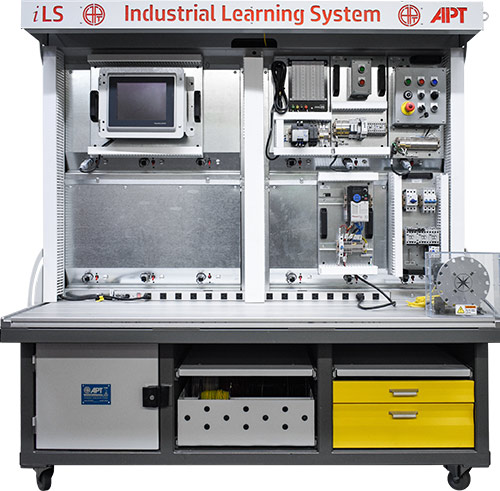

Floor Workstation

iLS-12-BASE

Shown with modules on left side

  1. Additional 120VAC Power Strip For Accessories
  2. Quick Disconnect Plugs w/ 5A Breaker For 24VDC Module Power
  3. On-Board Air Compressor
  4. Wire Drawer
    • Holds up to eight (8) 500 ft reels of wire
  5. Spare Drawer
  6. Tool drawer
    • Contains three (3) terminal screwdrivers, wire strippers, crimper, Fluke meter, tube cutter, Hex wrench
  7. 120VAC, 15A Power Cord plugs into wall outlet for power
  8. Overall dimensions: 72″ L x 28.5″D x 77.25″H
  9. Simple hanging cleat design

Desktop Workstation

iLS-D2-24VDC

Shown with modules on right side

  • DeskTop Unit holds
    • (2) Size 1 Modules
      • or
    • (1) Size 2 Modules
  • Includes 120VAC Power Cord
  • Quick Disconnect Plugs w/ 5A Breaker For 24VDC Module Power
  • Non-Skid Feet.
  • Simple hanging cleat design
  • Dimensions:
    • Deployed: 25-3/4” W x 16” D x 19” H
    • Folded for Storage: 25-3/4” W x 20-7/8” D x 4-5/8” H

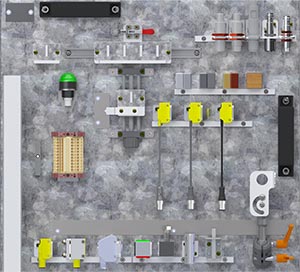

Explore our Learning Lab Modules

Image 1Description 1Column2Column3Image 2Description 2Column4Column5
Logic SystemsHEADER, Logic Systems
PLC Module - Guardlogix
iLSM-W1-E-RAGLX
PLC Module - CompactLogix
iLSM-W1-E-RACLX
PARTNUMBER, Logic Systems
Size 1 Hanging Module
9-7/8” W x 18” H
Size 1 Hanging Module
9-7/8” W x 18” H
Logic Systems
The GuardLogix module features a safety PLC which allows instructors to teach learners how to program safety devices and can be used with the light curtain, area scanner, and door interlock modules. The CompactLogix module features a Compact Logix PLC which allows instructors to teach learners introductory level PLC programming. The PLC includes both discrete and analog cards with 16 input & 16 output ports in each card. This module can be used in combination with the RAPV10 module to teach a full course on HMI programming. It can also be used in combination with many of the other ILS modules to expand its potential for learning experiences.Logic Systems
Includes: Rockwell Automation GuardLogix 5380 Series Safety PLC, (1) Safety Input Module (1) Safety Output Module, (1) Standard Input Module, (1) Standard Output Module. Prewired I/O (50%) to Terminal Strip.Includes: Rockwell Automation CompactLogix 5370 Series PLC and 16/16 Built-In I/O Also equipped with Analog I/O & a high speed counter. Discrete I/O prewired to Terminal StripLogic Systems
Operator InterfaceHEADER, Operator Interface
Push Button Interface Module
iLSM-W1-I-RAPB9
HMI Module
iLSM-W2-I-RAPV10
PARTNUMBER, Operator Interface
Size 1 Hanging Module
9-7/8” W x 18” H
Size 2 Hanging Module
19-7/8” W x 18” H
Operator Interface
The PB9 module is a push button interface panel with 9 devices, including push buttons, selector switches, E-stop button, and more. This is an excellent tool for teaching introductory lessons on panel wiring. It can be combined with other modules to expand its capabilities such as RARLY2B, RACOC, RAPFXVFD, and many others. The module is delivered unwired, which allows it to be transformed into the perfect use at the right moment. This is the tool that becomes whatever you want it to be when you want it to be it. The HMI module features a PanelView 5310 mounted on a hinged door, allowing easy access to the data ports on the rear of the HMI. This module is ideal for teaching introductory and advanced HMI programming and can easily be combined with either the RAGLX or RACLX modules. Operator Interface
Includes: Rockwell Automation Pushbutton Enclosure For (9) Devices. Includes Illuminated Buttons, Selector Switches, E-Stop Button, Potentiometer, Joystick, Bubble Light, and Buzzer.Includes: Rockwell Automation PanelView 5000 HMI. Includes 10" HMI Mounted To Hinged Door. Operator Interface
ElectricalHEADER, Electrical
Relay Module
iLSM-W1-E-RARLY2B
-

a

PARTNUMBER, Electrical
Size 1 Hanging Module
9-7/8” W x 18” H
Electrical
The Relay module features a selection of multiple relays, such as ice cube relays, a timer relay, and 2 terminal relays. It also includes a 2-button push button panel for START-STOP circuits. This module can be used in combination with many other modules to expand its potential in learning experiences. Electrical
Includes: Rockwell Automation Relay Module. Includes (2) Illuminated Buttons, (2) Contactors, (2) Ice Cube Relays, (2) Terminal Relays, and (1) Timing Relay. Can Be Used for Various Relay Logic Circuits and Conveyor Controls.
Conveyor Not Included.
Electrical
Safety DevicesHEADER, Safety
E-Stop Module
iLSM-W1-S-RAESTOP
Door Interlock Module
iLSM-W2-S-INTLK
PARTNUMBER, Safety
Size 1 Hanging Module
9-7/8” W x 18” H
Size 2 Hanging Module
19-7/8” W x 18” H
Safety
The E-stop module features a safety controller and safety relays. Instructors can teach learners how to wire discreet safety circuits. It can also be used in combination with other equipment such as the conveyor or 3-phase motor. The Door Interlock Module consists of multiple interlock devices including door interlocks, solenoid locks, and trapped key locking. This module can be used to demonstrate how to program and troubleshoot safety interlock devices. All devices are pre-wired to the terminal strip, making it easier for learners to focus on the programming and troubleshooting. It is recommended to use this module in combination with the RAGLX module. Safety
Includes: Rockwell Automation E-Stop. Includes E-Stop Button, Safety Relays, (2) Illuminated Buttons. Conveyor Not IncludedIncludes: Rockwell Automation Various Types Of Door Interlocks. Includes Non-Contact Coded Magnet, Solenoid Locking, and Trapped Key. All Devices Pre-Wired To Terminal Strip.Safety
Light Curtain Module
iLSM-T4-S-RALC300
Area Scan Module
iLSM-T4-S-HKSCAN
PARTNUMBER, Safety
Desktop Module
Deployed: 25-1/2” W x 13-1/2” H x 8-1/4” D
Folded for storage: 25-1/2” W x 4-5/8” H x 8-1/4” D
Desktop Module
5-1/2” W x 6-1/2” H x 5-1/2” D
Safety
The Light Curtain module uses 300 mm long light curtains, which fold down for easy storage. Students will learn how to program safety circuits with the RAGLX module. They also will learn how to make alignments and troubleshoot error messages related to light curtains. The base of the module comes with a handle making it easier to transport. It can be used in combination with many other modules, especially when using the RAGLX and RAPV10 modules.The Area Scanner module consists of a Hokoyu area scanner set in a small base. The Hokoyu area scanner is the same scanner used on the Mechatronics Cart and CSM stations. Students will learn how to program and setup the area scanner in combination with the RAGLX module. The Hokoyu area scanner requires an app through Hokoyu to complete the setup process. Safety
Includes: Rockwell Automation 450L-Series Light Curtain Emitter/Receiver Pair, 300mm Length. Includes Cables.
Requires iLSM-W1-S-RAESTOP For Full Utilization.
Includes: Hokoyu Area Scanner, w/ E-Stop and Warning OSSD Outputs. 270 Degree Scan.Safety
Motor ControlHEADER, Motor Control
VFD Module
iLSM-W1-D-RAPFXVFD
Contactor / Overload Module
iLSM-W1-D-CONOL
PARTNUMBER, Motor Control
Size 1 Hanging Module
9-7/8” W x 18” H
Size 1 Hanging Module
9-7/8” W x 18” H
Motor Control
The VFD module uses a PowerFlex VFD to allow modifications to power sources to meet the needs of the circuit. It is best used in combination with the OR3PHGM and RACOC modules in regards to motor control circuits. The VFD utilizes 120 VAC power, which is provided by the power strip on the ILS base. Students learn how to change settings within the VFD to create the power supply they need such as 3-phase 240 VAC. The Contactor/Overload Module is perfectly designed for teaching motor control circuits. It combines both forward & reverse motor starters with a basic motor starter all on a Size 1 module. The basic motor starter circuit uses 3 breakers with an overload sensor to teach students how to safely wire 3-phase motor circuits. The forward and reverse motor circuits use a motor starter protector with two motor starters. This board comes unwired with all the components. This module is designed to be used in combination with either the RARLY2B or RAPB9 module to control the start sequence. Use the RAPFXVFD and OR3PHGM modules to then operate the motor. It can also be used with the RAGLX or RACLX modules for PLC programming with motor controls. Motor Control
Includes: Rockwell Automation Powerflex Variable Frequency Drive (VFD). Converts 120VAC From Power Strip To 240VAC 3 Phase To Control Motor.
Note: Requires ILSM-T4-M-OR3PHGM.
Includes: Rockwell Automation Contactor and Overload Module. Includes (1) Non-Reversing Contactor With Motor Starter Protector, and (1) Reversing Contactor With Traditional Circuit Breaker/Overload Device.
Note: Requires ILSM-T4-M-OR3PHGM.
Motor Control
3-Phase Gear Motor Module
iLSM-T4-M-OR3PHGM
Conveyor Module
CON-4536TNM-BL-E
PARTNUMBER, Motor Control
Desktop Module
10-1/4” W x 9-1/4” H x 8-3/4” D
Desktop Module
36-1/2” L x 16-1/2” W x 9-7/8” H
Motor Control
The 3-phase Gear Motor module is a 3-phase, 230VAC motor which includes a proximity sensor and a photoeye to provide coarse and fine positioning. The motor is mounted to the tabletop of the ILS base using two bolts. The Conveyor module is a 36" conveyor which is mounted to the ILS tabletop. It uses an EIP Remote I/O block to communicate with a PLC such as the RAGLX and RACLX modules. It can also be wired discreetly when combined with the RAPFXVFD RACOC modules. This is a tremendously versatile module and can be used to teach a wide range of concepts. Motor Control
Includes: Inverter-Duty Gearmotor, 230VAC, 3PH. Includes Aluminum Disc With Holes. A Proximity Sensor and Photoeye Provide Coarse and Fine Positioning.Includes: Belt Conveyor With Pre-Wired Brushless DC Motor and Variable Speed Control. Measures 4-1/2"W x 36" Long. Photo Eyes at each end prewired To EIP Remote I/O Block. Can Be Used Stand-Alone Or Connected To Other Modules.Motor Control
Pneumatics HEADER, Pneumatics
Pneumatic Module - Ethernet IP
iLSM-W1-P-SMC4PV
Pneumatic Module - Discreet
iLSM-W2-P-SMC4VIND
PARTNUMBER, Pneumatics
Size 1 Hanging Module
9-7/8” W x 18” H
Size 1 Hanging Module
9-7/8” W x 18” H
Pneumatics
The Pneumatic Valve Manifold module includes 4 unique valve types that can be controlled via ethernet through a PLC. This module allows for more advanced instruction in pneumatic systems and must be integrated with either the RAGLX or RACLX PLC modules. Further extensions in learning experiences could be made by including the use of safety devices such as the INTLK, RALC300, and HKSCAN modules.The 4-valve Pneumatic module contains four different valves, each of which is used on the Mechatronics cart. It also contains a flow regulator. Each valve is pre-plumbed to the flow regulator and pre-wired to the terminal. This module is best used to teach introductory pneumatic systems concepts when used in combination with the SMC4PV and SMCPNP4V modules. Pneumatics
Includes: SMC Pneumatic Valve Manifold. Includes (4) Unique Valve Types and Ethernet Protocol Communications.
Requires PLC
Includes: SMC Pneumatic Individual Valves (4) Of VariousTypes Prewired To Terminal Strip, and FRL Unit With Pressure Switch.
This module requires either the RAPB9 or RARLY modules for controls.
Pneumatics

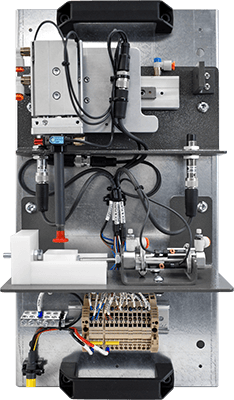

Project Module: Pneumatic Pick & Place
iLSM-W1-P-SMCPNP4V
-PARTNUMBER, Pneumatics
Size 1 Hanging Module
9-7/8” W x 18” H
Pneumatics
The Pick-N-Place module brings the pneumatic systems boards full circle with a project-based focus. Learners design a pneumatic system to pick up a quarter-sized disc and move it to a new location on the module. This module must be controlled using the RAPB9 or RARLY modules, or it can also be controlled using the RAGLX or RACLX PLC modules. This module DOES NOT include any valves and must be used in combination with either the SMC4PV or SMC4VIND module. Pneumatics
The module includes: Pneumatics Automation Project Illustrates a Common Industrial Pick and Place Application. Includes Pneumatic Actuators With Sensors and Vacuum Suction Cup With Pressure Sensor. Picks and Places a Token.
Requires Some Form Of Control Logic (e.g. PLC, 9PB Button Module, Relay Module, Etc.) AND either the iLSM-W1-P-SMC4PV or iLSM-W2-P-SMC4VIND Module.
Pneumatics
AccessoriesHEADER, Accessories
Blank Module - Size 1
iLSM-W1-G-APTBLNK
T-Slot Hanging Module
iLSM-W1-G-TSLOT
PARTNUMBER, Accessories
Size 1 Hanging Module
9-7/8” W x 18” H
Size 1 Hanging Module
9-7/8” W x 18” H
Accessories
Blank Module For Customizing.
Includes Handles, Wire Duct, and DIN Rail.
T-Slot Mounting Board Accessories
Blank Module - Size 2
iLSM-W2-G-APTBLNK
T-Slot Desktop Module
iLSM-T4-G-TSLOT
PARTNUMBER, Accessories
Size 2 Hanging Module
19-7/8” W x 18” H
Desktop
9" x 18"
Accessories
Blank Module For Customizing.
Includes Handles, Wire Duct, and DIN Rail.
T-slot mounting board is designed to be used on a table top or work bench allowing the students to set up and build what they would like. It is equipped with rubber feet for stability and scratch resistant to the desk. Accessories
Blank Module - Size 3
iLSM-W3-G-APTBLNK
-PARTNUMBER, Accessories
Size 3 Hanging Module
29-7/8” W x 18” H
Accessories
Blank Module For Customizing. Includes Handles, Wire Duct, and DIN Rail. Accessories
StorageHEADER, Accessories
Wall Mount Storage Rails
iLSM-WSR72
Stand Alone Storage Rack
iLSM-MSR
PARTNUMBER, Accessories
72” W x 18” H x ½” D42-1/4” W x 78” H x 26-1/2” DAccessories
Wall Mount Storage Rails made from steel and powder coated for protection (Shown with Module)Stand Alone Storage Rack with castors for ease of moving and storing. The rack contains (4) Size 3 storage panels on the inside and (6) Size 2 panels on sides, providing storage for up to 24 Size 1 panels. The Storage Rack also has two stationary shelves for extra storage. (Shown with Modules)Accessories
