Single Station Wide Table

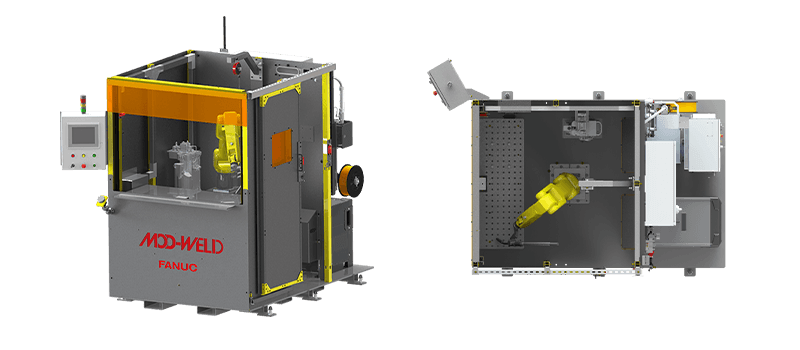

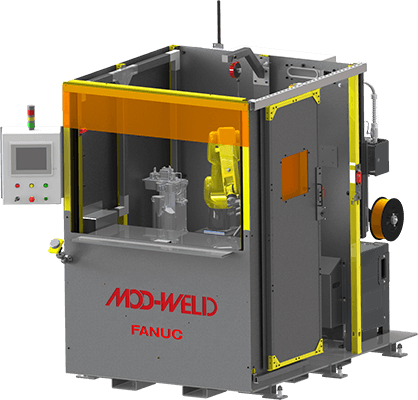

The fixed table allows the operator to load the parts directly into their fixture as the robot waits in a safe position for the safety door to close before welding.

MOD-WELD Single Station Fixed Wide Table Specs
Exclusive with FANUC Robot
System ModelSSFWT-48-AM50SSFWT-72-AM100SSFWT-96-AM120
6-Axis RobotFANUC ARC Mate 50iDFANUC ARC Mate 100iDFANUC ARC Mate 120iD
Robot Reach36”57”72”
Cell Footprint60" x 90"84" x 102"108" x 114"
Table Work Space24" x 48"36" x 72"48" x 96"
Available I/O8 in 8 out
Available Valve Bank Space(4) closed center / (4) Blanks
Operator Interface / Recipe ManagementRockwell PLC/HMI Interface
Table Hole size16mm Dia 2" x 2" Hole Pattern
Tips & TricksFANUC CRX Tips & Tricks
Options
Part NumberPart Description
TRTip Reamer, Nozzle Spray, & Wire Snip all in one system. Available with either power supply.
ABIO-8Additional Allen Bradley I/O, 8 in 8 out
SY7301-5U1-NAAdditional 3 position closed center valve
MW-(##)-EX-HOODExhaust Hood with 8" Duct - Available in 48", 72" & 96"

MOD-WELD Single Station Wide Table

View our Modular Welding Solutions Catalog
  • FANUC Robot / Rockwell Controls / Integrated by APT Manufacturing
  • Load/Unload directly into the weld cell
  • Locating holes for Fixtures to be removed and set back up in same location
  • Ease of set up
  • Easy maintenance and cleanliness
  • Side access door for entering in a safe environment
  • Small footprint
  • Recipe Management with room for up to 100 recipes
  • Base model is configured to weld steel (hard metal), soft metals require additional options
Choose Your Power Supply
FroniusMiller
400iTPSi, air-cooled torch for welding steel. Comes with .035 wire feed rollers 3PH Power. Optional consumable or replacement parts up to 1/16350CAuto-Continuum™ 3PH or Auto-Deltaweld™ 1PH, air-cooled torch for welding steel. Comes with .035 wire feed rollers. Optional consumable or replacement parts up to 1/16
400iTPSi, air-cooled torch for welding steel. Comes with .035 wire feed rollers 3PH Power. Optional consumable or replacement parts up to 1/16350DAuto-Continuum™ 3PH or Auto-Deltaweld™ 1PH, air-cooled torch for welding steel. Comes with .035 wire feed rollers. Optional consumable or replacement parts up to 1/16
400i-CTPSi, cooler & water cooled torch. Comes with .035 wire feed rollers 3PH Power. Optional consumable or replacement parts up to 1/16500C-CAuto-Continuum™ or Auto-Deltaweld™, cooler & water-cooled torch Comes with .035 wire feed rollers. 3PH Power. Optional consumable or replacement parts up to 1/16
500i-CTPSi, cooler & water cooled torch. Comes with .035 wire feed rollers 3PH Power. Optional consumable or replacement parts up to 1/16500D-CAuto-Continuum™ or Auto-Deltaweld™, cooler & water-cooled torch Comes with .035 wire feed rollers. 3PH Power. Optional consumable or replacement parts up to 1/16
400i-C-STPSi, cooler, water-cooled torch, push/pull CMT ready package for both steel (hard wire) & aluminum (soft wire) Equipped with 3/64 start-up consumables & drive wheels for aluminum welding. 3PH Power500C-C-SAuto-Continuum™ 500, cooler, water-cooled FANUC Servo Torch to pull the wire. Equipped with 3/64 start-up consumables & drive wheels for aluminum welding. 3PH Power
500i-C-STPSi, cooler, water-cooled torch, push/pull CMT ready package for both steel (hard wire) & aluminum (soft wire) Equipped with 3/64 start-up consumables & drive wheels for aluminum welding. 3PH Power500C-C-SAuto-Continuum™ 500, cooler, water-cooled FANUC Servo Torch to pull the wire. Equipped with 3/64 start-up consumables & drive wheels for aluminum welding. 3PH Power
Tips & TricksFronius TPS/i Tips & TricksTips & TricksMiller Auto-Continuum™ Tips & Tricks
Available TrainingMiller OpenBook
Software Options
Fronius
PMCFronius Pulse Multi-Control, regulated, low-spatter droplet detachment. At the same time, PMC generates a stable arc which results in perfect control of the weld pool.
LSCFronius Low Spatter Control, achieves high-quality weld seams with minimal spattering and increased deposition rate, as the LSC principle is based on the short circuit occurring at a low current level. This leads to soft reignition and a stable welding process.
CMTFronius Cold Metal Transfer (CMT) welding, only available in CMT ready machines. Ideal for high performance welding in the areas of thin materials, brazing, visual aesthetics, cladding & WAAM welding consisting of all ranges of materials from Aluminums, Steels, Coppers, Titanium, & Nickel alloys
FANUC
TPWFANUC Thick Plate Weld Package is Touch Sensing & Through Arc Seam Track in one package. This robot/cobot software is available on both Fronius & Miller
hmi graphic

Our standard MOD-WELD systems use APT’s efficient and easy to use operator interface.
