Cobot Weld Navigator

Deploy the cobot to the work area, ideal for large or difficult‑to‑move workpieces
Increase production flexibility by delivering welding wherever production demands it, up to 100 ft.
Portable, modular platform reduces material handling, minimizes set up time.
Designed to be magnetically mounted to floors, walls, or ceilings
Multiple platforms available to best fit your application
Industries served: Shipbuilding, heavy fabrication, structural steel, rail, energy & offshore
Powder coat finish for corrosive environments

MOD-WELD Navigator Specs

MOD-WELD Specs	Single	Dual
System Model	NAV3-#-#	NAV3-#-#-3-#-#
6-Axis Robot	FANUC CRX-3iA	FANUC CRX-3iA (x2)
Cobot Reach	692 mm
Cobot Payload	3 kg
Cobot Weight	11 kg (24 lbs)
Cobot Power	120v 20 amp
Cobot Repeatability	"+/- 0.02 mm"
Cobot Programming	Tablet only
Torch Dressout	Quick Change
Cart Footprint	72.1875”L x 53.75"W x 64.4375"H	72.1875”L x 53.75"W x 75.75"H
Approx Weight	1700 lbs	2100 lbs
Power Supply	Welding or Cutting	2 Welders, 2 Cutters, or 1 each
Tips & Tricks	FANUC CRX Tips & Tricks

Choose Your Power Supply

Fronius Part #	Fronius Info
Fronius
400i	TPSi, air-cooled torch for welding steel. Includes PMC software. Comes with .035 wire feed rollers 3PH Power. Optional consumable or replacement parts up to 1/16
400i	TPSi, air-cooled torch for welding steel. Includes PMC software. Comes with .035 wire feed rollers 3PH Power. Optional consumable or replacement parts up to 1/16
400i-C	TPSi, cooler & water cooled torch. Includes PMC software. Comes with .035 wire feed rollers 3PH Power. Optional consumable or replacement parts up to 1/16
500i-C	TPSi, cooler & water cooled torch. Includes PMC software. Comes with .035 wire feed rollers 3PH Power. Optional consumable or replacement parts up to 1/16
400i-C-S	TPSi, cooler, water-cooled torch, push/pull CMT ready package for both steel (hard wire) & aluminum (soft wire). Includes PMC software. Equipped with 3/64 start-up consumables & drive wheels for aluminum welding. 3PH Power
500i-C-S	TPSi, cooler, water-cooled torch, push/pull CMT ready package for both steel (hard wire) & aluminum (soft wire). Includes PMC software. Equipped with 3/64 start-up consumables & drive wheels for aluminum welding. 3PH Power
Tips & Tricks	Fronius TPS/i Tips & Tricks

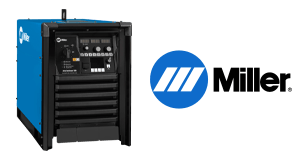

Miller Part #	Miller Info
Miller
350C	Auto-Continuum™ or Auto-Deltaweld™, air-cooled torch for welding steel. Comes with .035 wire feed rollers. 3PH Power. Optional consumable or replacement parts up to 1/16
350D	Auto-Continuum™ or Auto-Deltaweld™, air-cooled torch for welding steel. Comes with .035 wire feed rollers. 3PH Power. Optional consumable or replacement parts up to 1/16
500C-CM	Auto-Continuum™ or Auto-Deltaweld™, cooler & water-cooled torch Comes with .035 wire feed rollers. 3PH Power. Optional consumable or replacement parts up to 1/16
500D-CM	Auto-Continuum™ or Auto-Deltaweld™, cooler & water-cooled torch Comes with .035 wire feed rollers. 3PH Power. Optional consumable or replacement parts up to 1/16
500C-C-S	Auto-Continuum™ 500, cooler, water-cooled FANUC Servo Torch to pull the wire. Equipped with 3/64 start-up consumables & drive wheels for aluminum welding. 3PH Power
500C-C-S	Auto-Continuum™ 500, cooler, water-cooled FANUC Servo Torch to pull the wire. Equipped with 3/64 start-up consumables & drive wheels for aluminum welding. 3PH Power
Tips & Tricks	Miller Auto-Continuum™ Tips & Tricks
Available Training	Miller OpenBook

Equipment Options

Image1 / Part#1	Description 1	Description 2
Laser Seam Tracking & Finding ST-##-#		2D & 3D iRVision iRV-##-###	grey
	Laser seam sensing helps robots compensate for part variation, improving weld accuracy & reducing manual touchups. See here for more details	FANUC iRVision provides 2D and 3D vision for accurate part location, weld seam tracking, and weld tip monitoring. See here for more details
Tip Reamer, Nozzle Spray, & Wire Snip TR-A1-4-C-B-C1		Wire Cutter Kit WC-B1-KIT-C1	grey
	Automatic Robotic Nozzle Cleaning Stations assist in maintaining quality & productivity in MIG welding cells by quickly & efficiently removing spatter build-up in the gas nozzle. (anti-spatter feature excluded on models for aluminum welding)	Wire cutter removes the ball at the end of the welding wire to provide smooth arc starts and consistent wire stick-out (ideal for Touch Sensing). Kit includes a Tregaskiss WC-400, cable, FRL, mounting bracket, and ¼” air tubing.
Gas Cylinder Cart WT-CC-2				grey
	With a low-profile platform positioned ½-inch above the floor, this cart is engineered to simplify the transport and handling of compressed gas cylinders in fabrication shops, manufacturing facilities, maintenance departments, & other industrial environments. Overall footprint of 24 1/2" x 24 1/2" & height of 37 1/4"

Software Options

More Software Information

ARC Control Software

Advanced Fronius welding processes provide precise arc control, reduced spatter, & improved weld quality across a range of materials & applications.

CMT – Cold Metal Transfer
Provides low-heat-input welding and brazing with minimal distortion and spatter. Ideal for joining steel and aluminum, galvanized sheet, and light-gauge aluminum. Suitable for stainless steel and magnesium.

PMC – Pulse Multi-Control
Delivers a powerful, stable arc with controlled droplet transfer for excellent weld-pool control, reduced spatter, and consistent weld quality.

LSC – Low Spatter Control
Provides stable short-circuit welding with low spatter, increased deposition rates, and improved arc control.

TPW - Thick Plate Weld Package

Combines Touch Sensing, Through Arc Seam Tracking (TAST), and Root Memorization to locate and follow weld joints while automatically compensating for part variation. The package helps reduce weld defects and improve productivity without additional laser, vision, or PC-based sensing hardware.

Offline Robot Programming

Robotmaster simplifies robot programming and simulation, allowing users to create and optimize programs offline. An intuitive click-and-drag interface, automated motion optimization, & multi‑manufacturer compatibility help reduce programming time and maximize robot capabilities.
