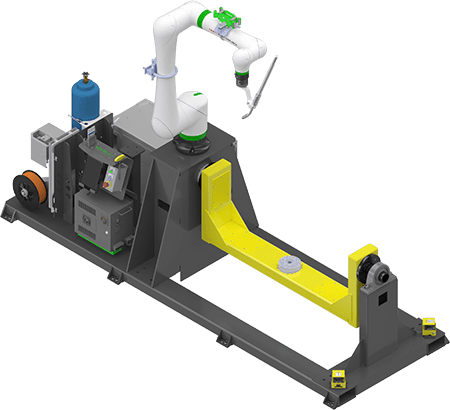

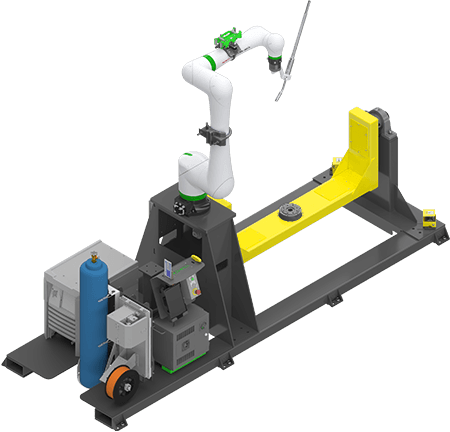

The Drop Center Cell is designed around the FANUC CRX-25iA utilizing 2 additional FANUC Auxiliary Axis, allowing the part to spin and rotate. This is used to get into places that can normally not be reached.
Options of Miller or Fronius Power Supply.
| Choose Your Power Supply | ||||||
|---|---|---|---|---|---|---|
| Fronius | Miller | |||||
| 400i | TPSi, air-cooled torch for welding steel. Includes PMC software. Comes with .035 wire feed rollers 3PH Power. Optional consumable or replacement parts up to 1/16 | 350C | Auto-Continuum™ 3PH or Auto-Deltaweld™ 1PH, air-cooled torch for welding steel. Comes with .035 wire feed rollers. Optional consumable or replacement parts up to 1/16 | |||
| 400i | TPSi, air-cooled torch for welding steel. Includes PMC software. Comes with .035 wire feed rollers 3PH Power. Optional consumable or replacement parts up to 1/16 | 350D | Auto-Continuum™ 3PH or Auto-Deltaweld™ 1PH, air-cooled torch for welding steel. Comes with .035 wire feed rollers. Optional consumable or replacement parts up to 1/16 | |||
| 400i-C | TPSi, cooler & water cooled torch.Includes PMC software. Comes with .035 wire feed rollers 3PH Power. Optional consumable or replacement parts up to 1/16 | 500C-CM | Auto-Continuum™ or Auto-Deltaweld™, cooler & water-cooled torch Comes with .035 wire feed rollers. 3PH Power. Optional consumable or replacement parts up to 1/16 | |||
| 500i-C | TPSi, cooler & water cooled torch.Includes PMC software. Comes with .035 wire feed rollers 3PH Power. Optional consumable or replacement parts up to 1/16 | 500D-CM | Auto-Continuum™ or Auto-Deltaweld™, cooler & water-cooled torch Comes with .035 wire feed rollers. 3PH Power. Optional consumable or replacement parts up to 1/16 | |||
| 400i-C-S | TPSi, cooler, water-cooled torch, push/pull CMT ready package for both steel (hard wire) & aluminum (soft wire). Includes PMC software. Equipped with 3/64 start-up consumables & drive wheels for aluminum welding. 3PH Power | 500C-C-S | Auto-Continuum™ 500, cooler, water-cooled FANUC Servo Torch to pull the wire. Equipped with 3/64 start-up consumables & drive wheels for aluminum welding. 3PH Power | |||
| 500i-C-S | TPSi, cooler, water-cooled torch, push/pull CMT ready package for both steel (hard wire) & aluminum (soft wire). Includes PMC software. Equipped with 3/64 start-up consumables & drive wheels for aluminum welding. 3PH Power | 500C-C-S | Auto-Continuum™ 500, cooler, water-cooled FANUC Servo Torch to pull the wire. Equipped with 3/64 start-up consumables & drive wheels for aluminum welding. 3PH Power | |||
| Tips & Tricks | Fronius TPS/i Tips & Tricks | Tips & Tricks | Miller Auto-Continuum™ Tips & Tricks | |||
| Available Training | Miller OpenBook | |||||
| Software Options | ||||||
| Fronius | ||||||
| LSC | Fronius Low Spatter Control, achieves high-quality weld seams with minimal spattering and increased deposition rate, as the LSC principle is based on the short circuit occurring at a low current level. This leads to soft reignition and a stable welding process. | |||||
| CMT | Fronius Cold Metal Transfer (CMT) welding, only available in CMT ready machines. Ideal for high performance welding in the areas of thin materials, brazing, visual aesthetics, cladding & WAAM welding consisting of all ranges of materials from Aluminums, Steels, Coppers, Titanium, & Nickel alloys | |||||
| FANUC | ||||||
| TPW | FANUC Thick Plate Weld Package is Touch Sensing & Through Arc Seam Track in one package. This robot/cobot software is available on both Fronius & Miller | |||||
