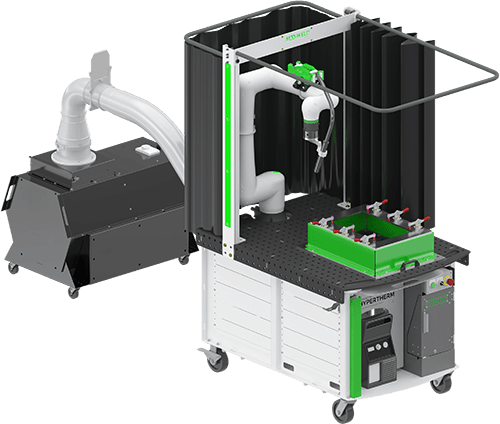

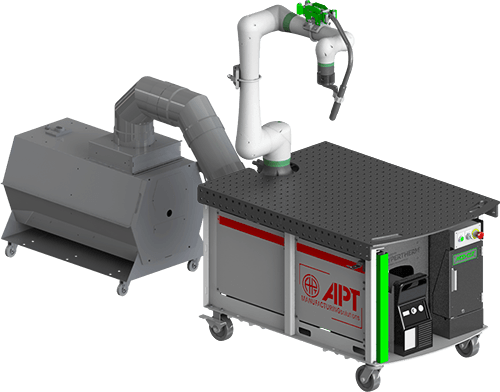

Collaborative Robot for Plasma Cutting
Robot Cart Standard Features:
| MOD-CUT Cart Specs | ||
|---|---|---|
| Exclusive with FANUC Cobot | ||
| System Model | CART10L-85 | |
 | Standard System w/ Powermax85 Sync Plasma Cutter, cuts up to 25 mm (1") | |
| 6-Axis Robot | FANUC CRX-10iA/L | |
| Robot Reach | 55" | |
| Robot Power | 120v 20 amp | |
| Robot Programming | Tablet only | |
| Robot Torch Guidance | Clever Torch Teach Guidance | |
| Torch Roller Dress-out | APT Custom Rollers | |
| Footprint | 40”W x 78” D | |
| Table Work Space | 40”W x 58-1/2” D | |
| Table Hole size | 16mm Dia, 2" x 2" Hole Pattern | |
| Tabletop | Downdraft Fume Extractor Tabletop w/ 6" duct (Fume Extractor Sold Separate) | |
| Approx Weight | 1300 lbs | |
| Options | ||
| Part Number | Part Description | |
| FE1200 | 1200 CFM Fume Extractor, sold separately, 8" to 6" duct | |
| RMS-3D | Robotmaster Offline 3D Programming software sold separate to aid in 3D programming (see page 26 for details) | |
| Cart Accessories | See Below | |
The Powermax85 SYNC® plasma cutter is a next-generation professional grade air plasma cutter that dramatically simplifies system operation for gouging and recommended cutting up to 25 mm (1″). Features automated system process set-up via advanced RFID-enabled SmartSYNC® torches and a revolutionary single-piece cartridge consumable that provides trackable utilization data.
Robotmaster is an offline robot programming and robot simulation software that allows task experts to program their robot quickly and easily from simple to complex tasks while maximizing the robot’s capabilities. This software dramatically reduces the robot offline programming and robot simulation time and effort.
Features include:
| Image1 / Part#1 | Description 1 | Image2 / Part#2 | Description 2 | ||||
|---|---|---|---|---|---|---|---|
| Collaborative Positioners | green | ||||||
| MIT40 | grey | ||||||
 | Collaborative Manual Index Positioner for Collaborative Robot Welding (Shown with WS 1826 Weld Screen)
| ||||||
| Safety | green | ||||||
| PCMC-8 | WS1826 | grey | |||||
 | Pull curtain - #8 plastic curtain Where the curtain comes together there are magnets to hold it closed Note: This is a safety shield from arc, not a safety shield from the robot |  | Tabletop Magnet Screen - #8 Dark Shield Mounts in 2 directions, 18" x 26" | ||||
| Drawers and Shelves All drawers have ball bearing slides for smooth function. | green | ||||||
| DW1025 | DW2025 | grey | |||||
 | Shallow drawer - Narrow Inner |  | Shallow drawer - Wide Inner Dimensions: 18.8"W x 14.8"L x 2.4"H Locations: B D | ||||
| DW1040 | DW2040 | grey | |||||
 | Medium drawer - Narrow Inner Dimensions: 8.8"W x 14.8"L x 3.9"H Location: E |  | Medium drawer - Wide Inner Dimensions: 18.8"W x 14.8"L x 3.9"H Locations: B D | ||||
| DIVS10 | DIVS20 | grey | |||||
 | Drawer divider set for narrow drawers Fits in: DW1025, DW1040 |  | Drawer divider set for wide drawers Fits in: DW2025, DW2040 | ||||
| SH1025 | SH2025 | grey | |||||
 | Storage shelf - Narrow 10"W x 15.75"L x 2.5"H Locations: E |  | Storage shelf - Wide 20"W x 15.75"L x 2.5"H Locations: E | ||||
| SCSH10 | SCSH20 | grey | |||||
 | Spray can storage shelf - Narrow 12"W x 3.625"D Locations: E F |  | Spray can storage shelf - Wide 22"W x 3.625"D Locations: A B C D | ||||
Storage, Bin, Clamps and Pins | green | ||||||
| BINP10 | BINP20 | grey | |||||
 | Bin box panel - Narrow, Includes 2 bins Bin size: 4 1/8”W x 5 3/8” L x 3” H Locations: E F |  | Bin box panel - Wide, Includes 4 bins Bin size: 4 1/8”W x 5 3/8” L x 3” H Locations: A B C D | ||||
| CR1007 | CR2013 | grey | |||||
 | Clamp Hanger - Narrow 7 clamp notches Locations: E F |  | Clamp Hanger - Wide 13 clamp notches Locations: A B C D | ||||
| PB1006 | PB2006 | grey | |||||
 | Pegboard Panel - Narrow Ø.25 holes, 1” spacing, Hole array 10 x 6 Locations: E F |  | Pegboard Panel - Wide Ø.25 holes, 1” spacing, Hole array 20 x 6 Locations: A B C D | ||||
Blank Covers | green | ||||||
| BP1045 | BP2045 | grey | |||||
 | Blank plate - Narrow 10" x 4-1/2" Tall Locations: E F |  | Blank plate - Wide 20" x 4-1/2" Tall Locations: A B C D | ||||
Holders | green | ||||||
| AGHG45 | grey | ||||||
 | Angle Grinder Holder with Cord Wrap Fits 4-1/2" Grinder | ||||||
