MATE Series Tilt Tables

  • FANUC Robot / Rockwell Controls / Integrated by APT Manufacturing
  • Load/Unload directly into the weld cell
  • Locating holes for Fixtures to be removed and set back up in same location
  • Ease of set up
  • Easy maintenance and cleanliness
  • Side access door for entering in a safe environment
  • Small footprint
  • Recipe Management with room for up to 100 recipes
  • Power Source Choice of:
    • Miller Auto-Continuum with torch and wire feed
    • Fronius TPS/i with torch and wire feed
View our Modular Welding Solutions Catalog

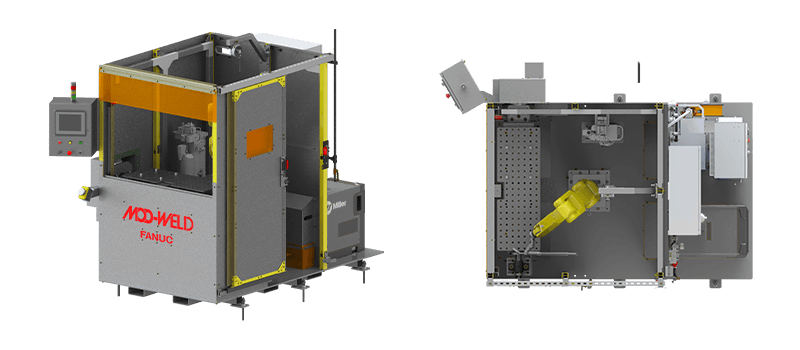

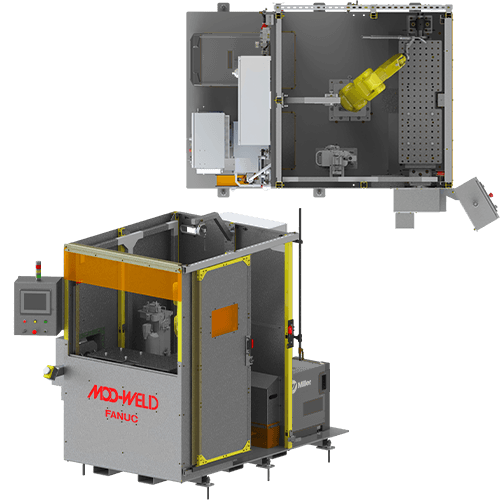

MOD-WELD Single Station Tilt Table

Single Station Tilt Table Specs

A fixed wide table with a FANUC Aux Axis added to rotate the fixture into the robot for ease of welding on the back side.

MOD-WELD Single Station Fixed Wide Table SpecsPower Supply Choice
Exclusive with FANUC Robot
System ModelSSAWT-48-AM50SSAWT-72-AM100SSAWT-96-AM120-Fronius 400Miller 350
6-Axis RobotFANUC ARC Mate 50iDFANUC ARC Mate 100iDFANUC ARC Mate 120iDPower SupplyTPSi-400Auto-Continuum 350
Robot Reach36”57”72”Main Voltage200-230V / 380-460 3-PH230-575 V 3-PH
Robot Power480VAC 3PH 60AMPTorchFronius .035 wireTregaskiss .035 wire
Robot ProgrammingTeach Pendent OnlyWelding Typelinklink
Torch Roller Dress-outMOD-WELD CustomAvailable TrainingMiller OpenBook
Available I/O8 in 8 outWelder TipsMiller Auto-Continuum™ Tips & Tricks
Available Valve Bank Space(4) closed center / (4) Blanks
Operator Interface / Recipe ManagementRockwell PLC/HMI Interface
Cell Footprint60" x 90"84" x 102"108" x 114"
Table Work Space15" x 42"27" x 66"39" x 90"
Table Hole size16mm Dia 2" x 2" Hole Pattern
Part NumberPart Description-DescriptionDescription
HWSTHeavy Weld Seam Track SoftwareHHTFHHT Fronius hand held torch as an addition to the robot torchMHHT Miller hand held torch as an addition to the robot torch
Custom Weld FixturesSend Drawings for QuotePower Supply UpgradeTPSi-500 and 600Auto-Continuum 500
ABIO-8Additional Allen Bradley I/O, 8 in 8 outCOOLERFronius ChillerMiller Chiller
SY7301-5U1-NAAdditional 3 position closed center valveSRVT (servo torch)Fronius Push/Pull Ready SystemFANUC Servo with Binzel Gun
MW-48-EX-HOOD48” Exhaust Hood with 8" ductWeld Process Software PMC / LSC / CMT
MW-72-EX-HOOD72” Exhaust Hood with 8" duct
MW-96-EX-HOOD96” Exhaust Hood with 8" duct
RANCRobotic auto nozzle cleaner, wire cut, spatter removal, and spatter spray
