MATE Series Dual Station Shuttle

  • FANUC Robot / Miller Power Source / Rockwell Controls Integrated by APT Manufacturing
  • Load/Unload directly into the weld cell
  • Locating holes for Fixtures to be removed and set back up in same location
  • Ease of set up
  • Easy maintenance and cleanliness
  • Side access door for entering in a safe environment
  • Small footprint
  • Recipe Management with room for up to 100 recipes
View our Modular Welding Solutions Catalog

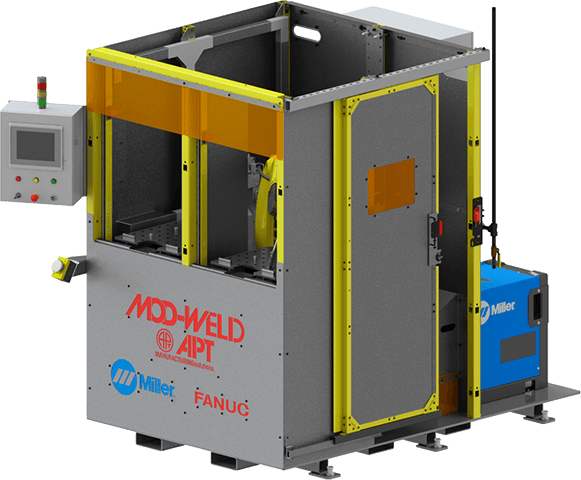

MOD-WELD Dual Station Shuttle

The shuttle system allows the operator to load/unload the product outside of the weld cell, then the auto shuttle will bring the product into the cell for welding. When the robot has completed the welds on shuttle “A” it will shuttle that fixture out and begin welding on shuttle “B”

Dual Station Shuttle Specs

MOD-WELD Dual Shuttle Station
ModelDSS-48-AM50DSS-72-AM100DSS-96-AM120
6-axis robotFANUC ARC Mate 50iDFANUC ARC Mate 100iDFANUC ARC Mate 120iD
Miller power source Auto-Continuum™ 350 Auto-Continuum™ 350 Auto-Continuum™ 350
Welding material type millerwelds.com/technologies/advanced-welding-processes
Footprint60" x 90"84" x 102"108" x 114"
Power Needed480VAC 3-Phase 60 AMP480VAC 3-Phase 60 AMP480VAC 3-Phase 60 AMP
Table size2 @ 20" x 26"2 @ 32" x 38"2 @ 44" x 50"
Available I/O8 in 8 out8 in 8 out8 in 8 out
Available valve bank space4 closed-center valves and 4 blanks4 closed-center valves and 4 blanks4 closed-center valves and 4 blanks
Enclosed cellyyy
Crane accessibleyyy

Accessories

Part NumberPart Description
ABIO-8Additional Allen Bradley I/O, 8 in 8 out
SY7301-5U1-NAAdditional 3 position closed center valve
500Upgrade to the Miller Auto-Continuum™ 500. Replaces the Auto-Continuum™ 350
MW-48-EX-HOOD48” Exhaust Hood with 8" duct
MW-72-EX-HOOD72” Exhaust Hood with 8" duct
MW-96-EX-HOOD96” Exhaust Hood with 8" duct
RANCRobotic auto nozzle cleaner, wire cut, spatter removal, and spatter spray
